مدارات مجتمع (آی سی ، IC)LM3S2950IQC50A2DA
نمایش بزرگتر

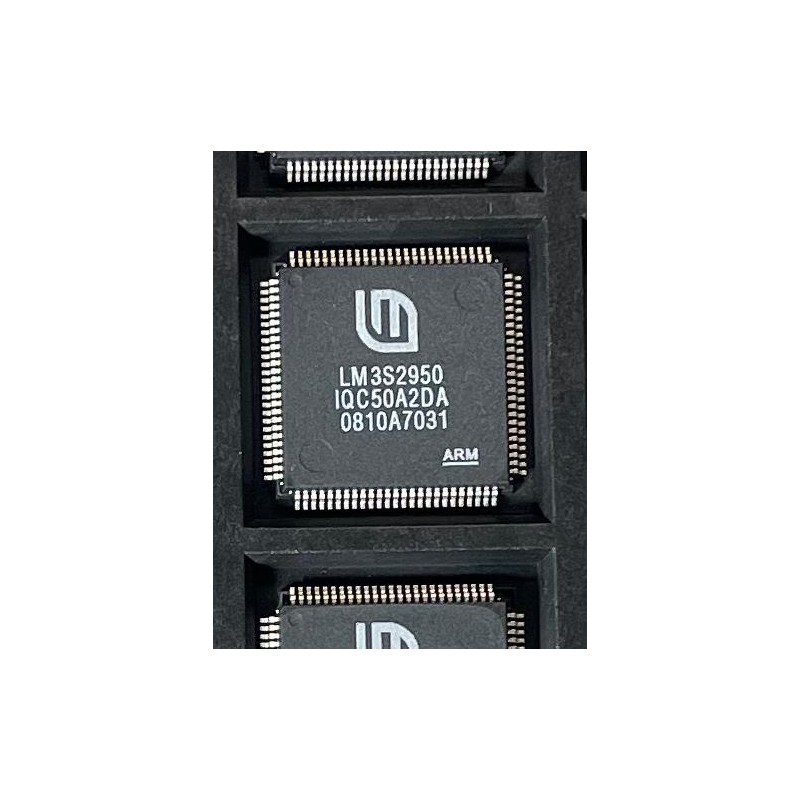

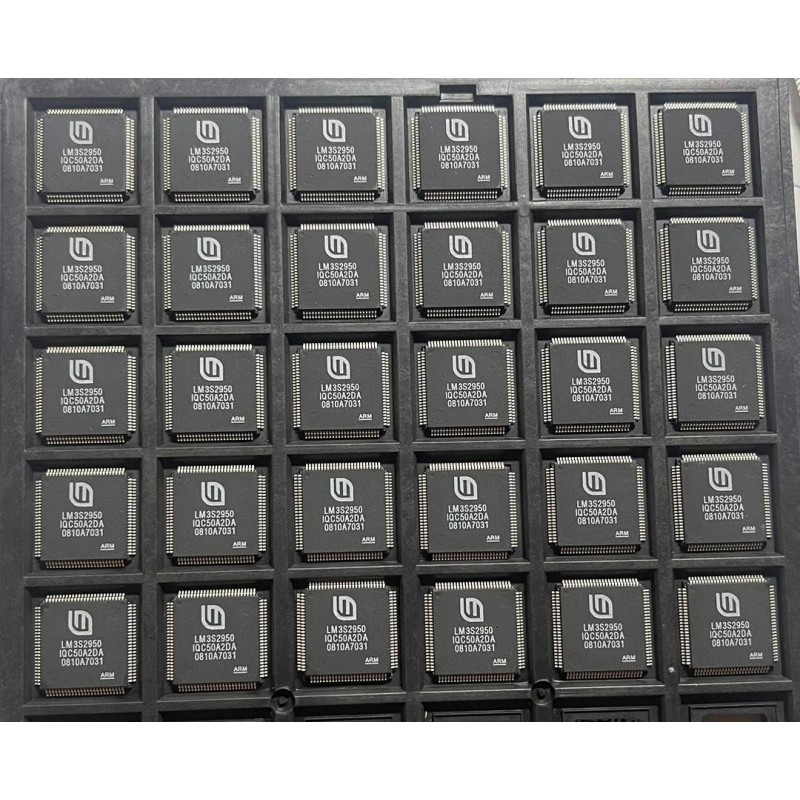

LM3S2950IQC50A2DA
کد کالا: 54555
نو (جدید)
دستهبندی: مدارات مجتمع (آی سی ، IC)
ARM® Cortex®-M3 Stellaris® ARM® Cortex®-M3S 2000 Microcontroller IC 32-Bit 50MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
فروشنده: : دلوان ماشین
تعداد محصولات: 33
تعداد طرفداران: 1
تاریخ افتتاح: 1403-06-03
دانلود
اطلاعات بیشتر
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Voltage - Supply (Vcc/Vdd): 2.25V ~ 2.75V
- Base Part Number: LM3S2950
- Speed: 50MHz
- Package / Case: 100-LQFP
- Program Memory Type: FLASH
- EEPROM Size: -
- Supplier Device Package: 100-LQFP (14x14)
- Series: Stellaris® ARM® Cortex®-M3S 2000
- Operating Temperature: -40°C ~ 85°C (TA)
- Number of I/O: 60
- Oscillator Type: Internal
- RAM Size: 64K x 8
- Part Status: Not For New Designs
- Mounting Type: Surface Mount
- Core Size: 32-Bit
- Connectivity: CANbus, I²C, IrDA, Microwire, QEI, SPI, SSI, UART/USART
- Program Memory Size: 256KB (256K x 8)
- Manufacturer: Texas Instruments
- Core Processor: ARM® Cortex®-M3
- Packaging: Tray
- Data Converters: -
- detail: ARM® Cortex®-M3 Stellaris® ARM® Cortex®-M3S 2000 Microcontroller IC 32-Bit 50MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
