مشخصات، دیتاشیت، قیمت و خرید AD9834BRUZ

AD9834BRUZ نمایش بزرگتر
AD9834BRUZ

کد کالا: 156

اوریجینال

دسته‌بندی: VCO,DDS,PLL,Synthesizer

موجودی: موجود

آی سی AD9834 یک DDS یا سینتی سایزر دیجیتال کامل تا فرکانس 37.5 مگاهرتز و با قابلیت تولید انواع شکل موج های سینوسی و مثلثی است و با ارتباط سریال نوع SPI برنامه ریزی می گردد.

جزییات بیشتر

موجودی انبار: 18 قلم

5,292,100 ریال

مستندات فنی و دیتاشیت


دانلودها: 700


ویژگی های: AD9834BRUZ

مشخصات کلی

نوع نصب : SMD
Package : TSSOP-20(HSSOP-20)
نوع : صنعتی
نوع عملکرد(Function Type) : سیگنال ژنراتور قابل برنامه ریزی
دمای کاری(سانتیگراد) : -40 to 105

ارتباطات

نوع ارتباط : ( SPI ) سریال

اطلاعات بیشتر

آی سی AD9834 یک DDS یا سینتی سایزر دیجیتال کامل تا فرکانس 37.5 مگاهرتز و با قابلیت تولید انواع شکل موج های سینوسی و مثلثی است و با ارتباط سریال نوع SPI برنامه ریزی می گردد.



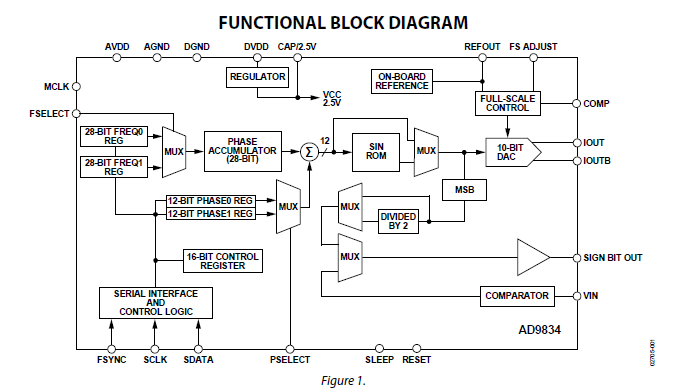

General Description

The AD9834 is a 75 MHz low power DDS device capable of producing high performance sine and triangular outputs. It also has an on-board comparator that allows a square wave to be produced for clock generation. Consuming only 20 mW of power at 3 V makes the AD9834 an ideal candidate for power-sensitive applications.
Capability for phase modulation and frequency modulation is provided. The frequency registers are 28 bits; with a 75 MHz clock rate, resolution of 0.28 Hz can be achieved. Similarly, with a 1 MHz clock rate, the AD9834 can be tuned to 0.004 Hz resolution. Frequency and phase modulation are affected by loading registers through the serial interface and toggling the registers using software or the FSELECT pin and PSELECT pin, respectively.
The AD9834 is written to using a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards.
The device operates with a power supply from 2.3 V to 5.5 V. The analog and digital sections are independent and can be run from different power supplies, for example, AVDD c an e qual  5 V with DVDD equal to 3 V.
The AD9834 has a power-down pin (SLEEP) that allows external control of the power-down mode. Sections of the device that are not being used can be powered down to minimize the current consumption. For example, the DAC can be powered down when a clock output is being generated.
The part is available in a 20-lead TSS OP.

Features

Narrow-band SFDR >72 dB
2.3 V to 5.5 V power supply
Output frequency up to 37.5 MHz
Sine output/triangular output
On-board comparator
3-wire SPI® interface
Extended temperature range: −40°C to +105°C
Power-down option
20 mW power consumption at 3 V
20-lead TSSOP


APPLICATIONS

Frequency stimulus/waveform generation
Frequency phase tuning and modulation
Low power RF/communications systems
Liquid and gas flow measurement
Sensory applications: proximity, motion, and defect detection
Test and medical equipment
