مشخصات، دیتاشیت، قیمت و خرید BLY36 Mullard

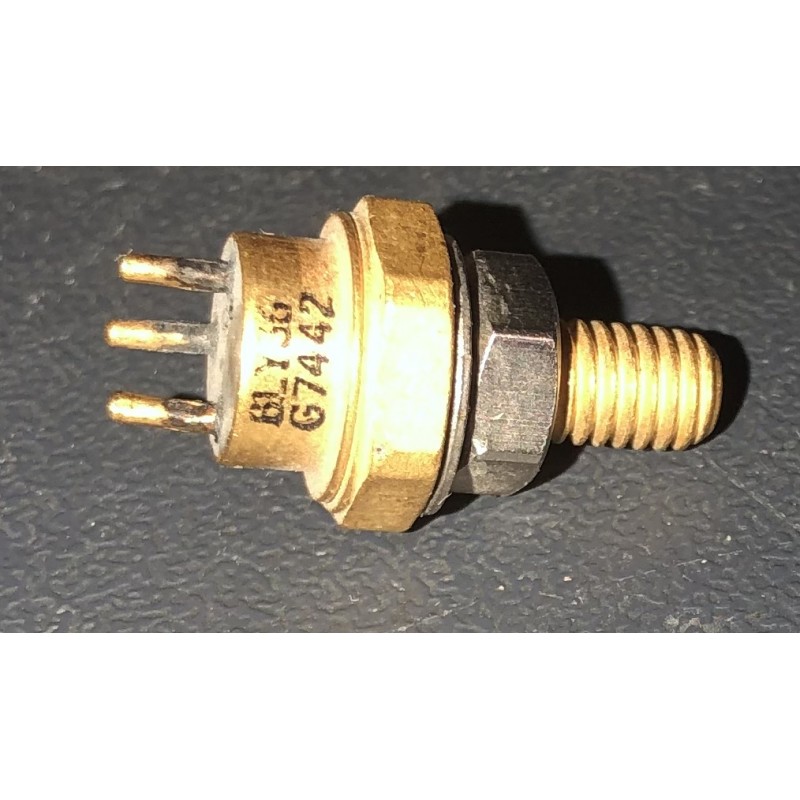

   Type Designator: BLY36
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 12 W
   Maximum Collector-Base Voltage |Vcb|: 40 V
   Maximum Collector-Emitter Voltage |Vce|: 20 V
   Maximum Emitter-Base Voltage |Veb|: 4 V
   Maximum Collector Current |Ic max|: 2.5 A
   Max. Operating Junction Temperature (Tj): 200 °C
   Transition Frequency (ft): 250 MHz
   Collector Capacitance (Cc): 45 pF
   Forward Current Transfer Ratio (hFE), MIN: 10
   Noise Figure, dB: -
   Package: TO60
