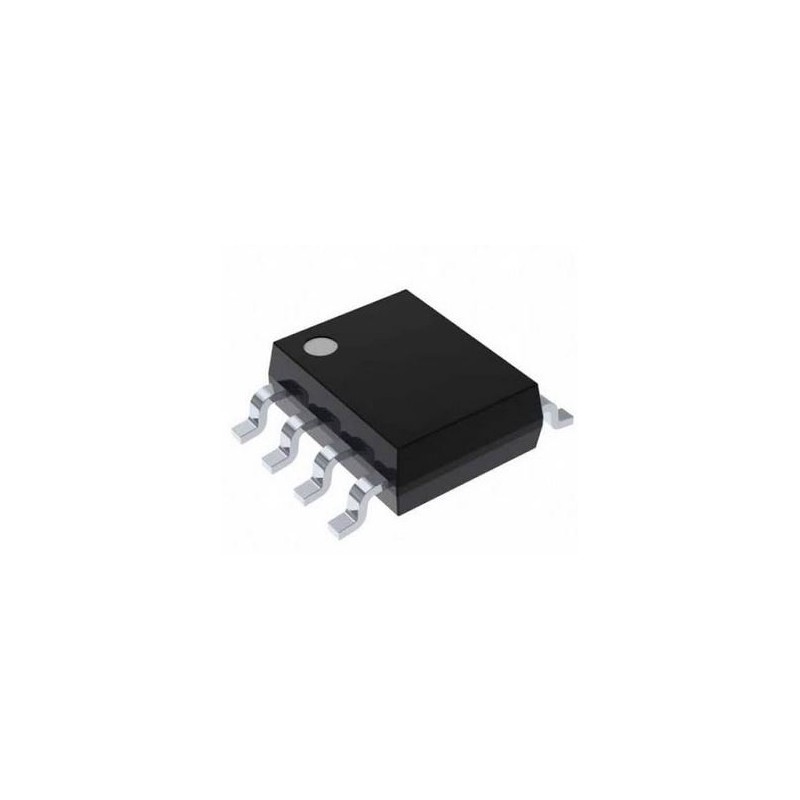

مشخصات، دیتاشیت، قیمت و خرید MAX6133AASA50+

Series Voltage Reference IC Fixed 5V V ±0.04% 15 mA 8-SOIC from Analog Devices Inc./Maxim Integrated.

Low Temperature Coefficient
3ppm/°C (max), SO
5ppm/°C (max), μMAX
Tiny 5mm ✕ 3mm μMAX Package
Low 200mV (max) Dropout Voltage
Low 40μA Quiescent Current
±0.04% (max) Initial Accuracy
Low 16μV P-P Noise (0.1Hz to 10Hz) (2.5V Output)
15mA Output Source-Current Capability
Wide 2.7V to 12.6V Supply Voltage
Excellent Line (30μV/V, max) and
Load (0.05mV/mA, max) Regulation
