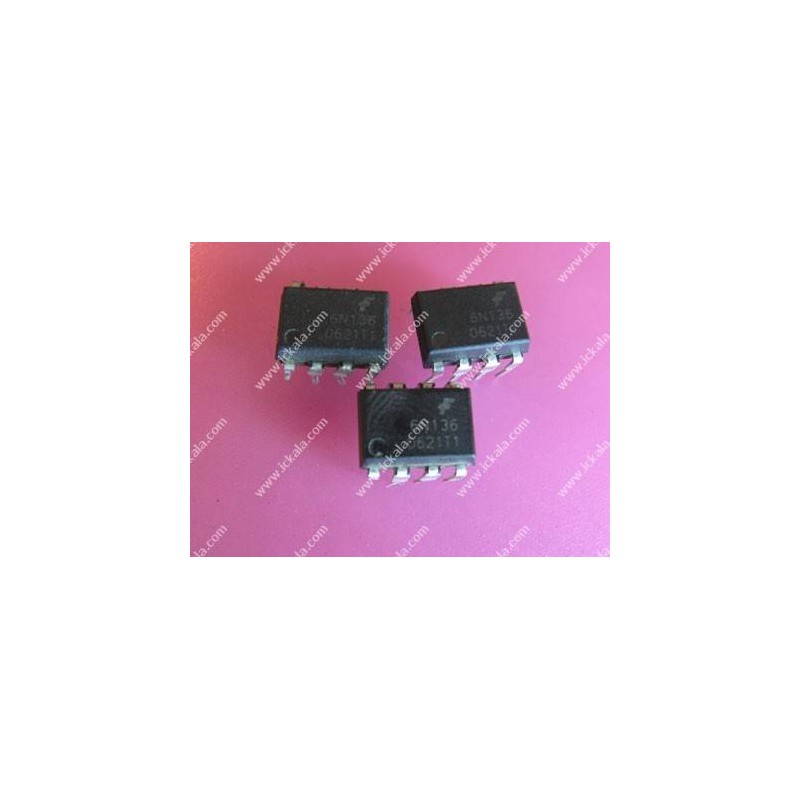

مشخصات، دیتاشیت، قیمت و خرید 6N136



Single-channel: 6N135, 6N136, HCPL-2503, HCPL-4502
Dual-Channel: HCPL-2530, HCPL-2531



Description
The HCPL-4502/HCPL-2503, 6N135/6 and HCPL-2530/HCPL2531
optocouplers consist of an AlGaAs LED optically coupled to
a high speed photodetector transistor.
A separate connection for the bias of the photodiode improves
the speed by several orders of magnitude over conventional
phototransistor optocouplers by reducing the base-collector
capacitance of the input transistor.
An internal noise shield provides superior common mode rejection
of 10kV/µs.
An improved package allows superior insulation permitting a 480 V
working voltage compared to industry standard of 220 V.



• High speed-1 MBit/s
• Superior CMR-10 kV/µs
• Dual-Channel HCPL-2530/HCPL-2531
• Double working voltage-480V RMS
• CTR guaranteed 0-70°C
• U.L. recognized (File # E90700)

• Line receivers
• Pulse transformer replacement
• Output interface to CMOS-LSTTL-TTL
• Wide bandwidth analog coupling
