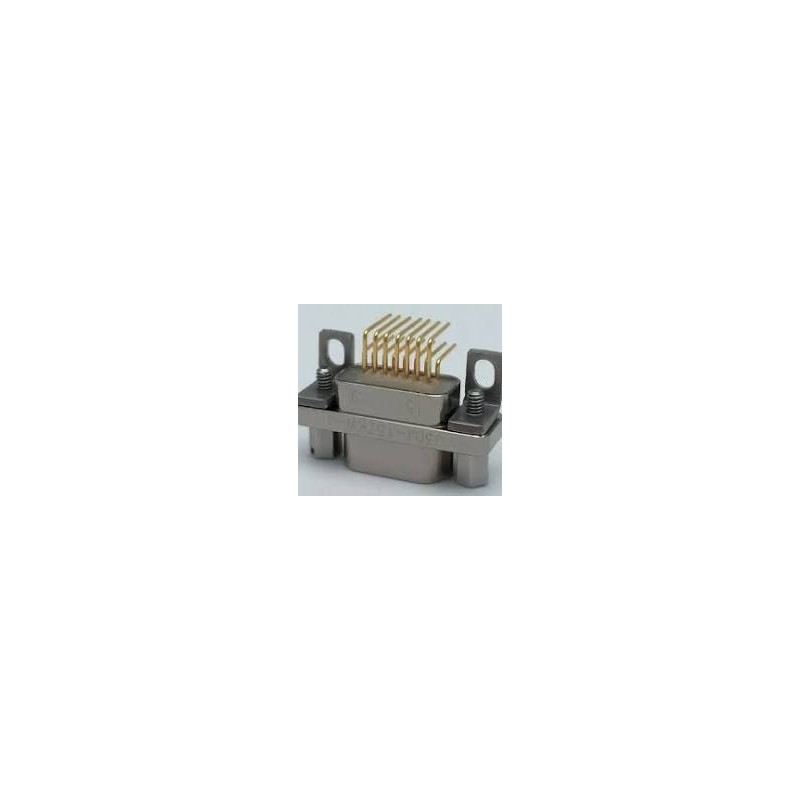

مشخصات، دیتاشیت، قیمت و خرید J30J-15ZKW-J

Part Number Decoder

• J30J: Series name (Micro-D connector with 1.27mm/0.050" contact pitch).
• 15: Number of contacts (15 Pins).
• Z: Type of connector. Z indicates a Receptacle (Female/Socket side). (Note: T would indicate a Plug/Male side).
• K: Contact type. K indicates Socket contacts.
• W: Termination style. W stands for Wire/Pigtail leads (pre-installed wires).
• J: Performance grade or specific finish (often denotes Gold plating or a high-reliability specification).

Key Technical Specifications

• Contact Pitch: 1.27mm (0.050").
• Current Rating: 3A per contact.
• Contact Resistance: ≤ 10 mΩ.
• Insulation Resistance: ≥ 5000 MΩ.
• Dielectric Withstanding Voltage: 800V.
• Operating Temperature: -55°C to +125°C.
• Vibration/Shock Resistance: Highly resistant to mechanical stress (twist-pin contact design).
• Shell Material: Usually Aluminum alloy with Nickel or Cadmium plating (though Cadmium is being phased out for RoHS versions).
